Create Private Container Registry

The DemoBrews dev team builds their container based services in a private container registry. In order for vK8s to pull images from this registry we need to specify its location and authentication information in F5 Distributed Cloud Console.

Exercise 1: Create the Container Registry

1. Verify you are in the Distributed Apps context, and have selected your namespace.



2. Ensure you have selected your assigned namespace

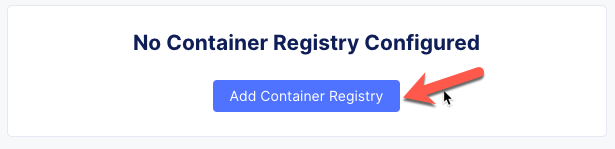

3. Select Container Registries under the “Applications” section. Click the Add button.

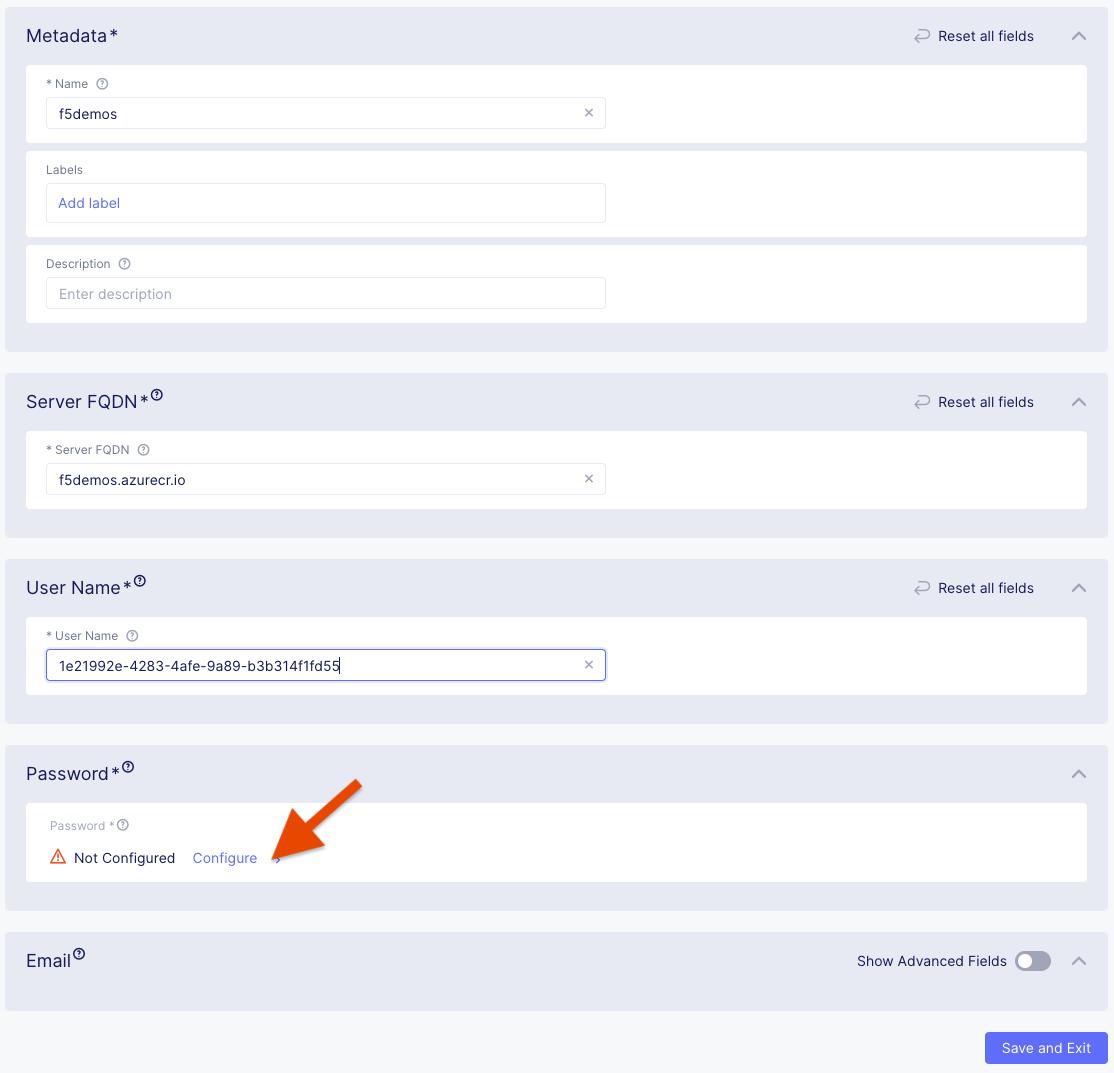

4. Complete the dialogue.

   Variable	Value
   Name	f5demos
   Server FQDN	f5demos.azurecr.io
   User Name	1e21992e-4283-4afe-9a89-b3b314f1fd55
   Password	MeszATg~US6QGw5G7S74~0gX2ky_XClhHB



   Warning

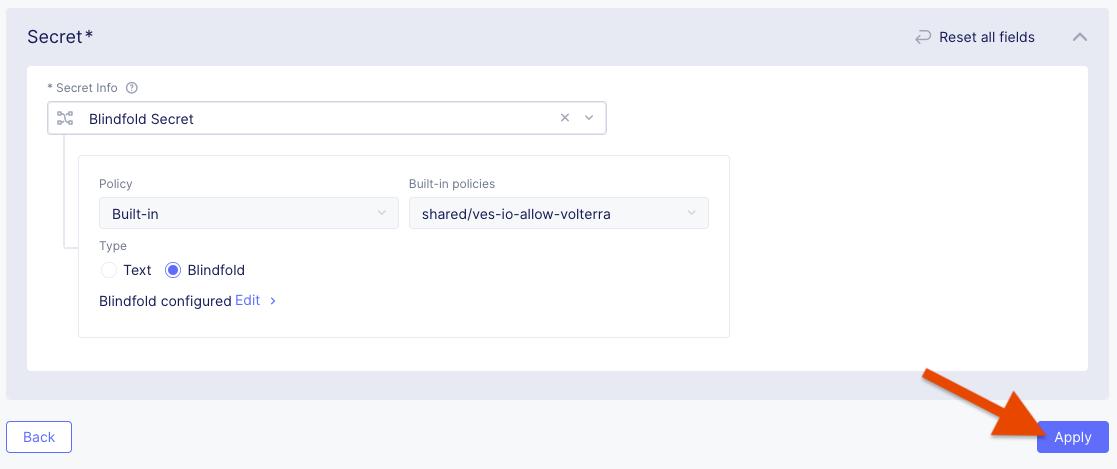

   Click on the “Blindfold” button, do not click on the radio button!

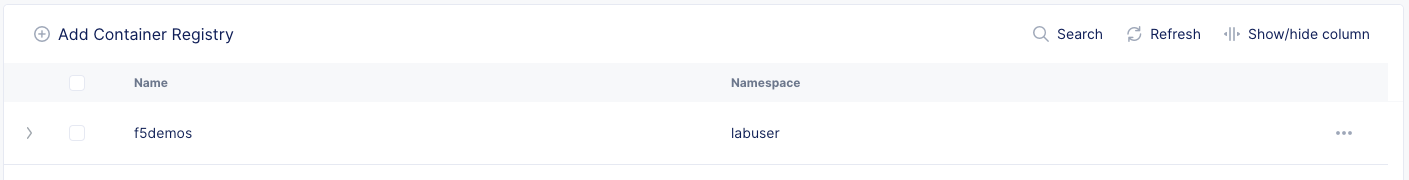

5. Verify the Container Registry was created.
